Product Overview

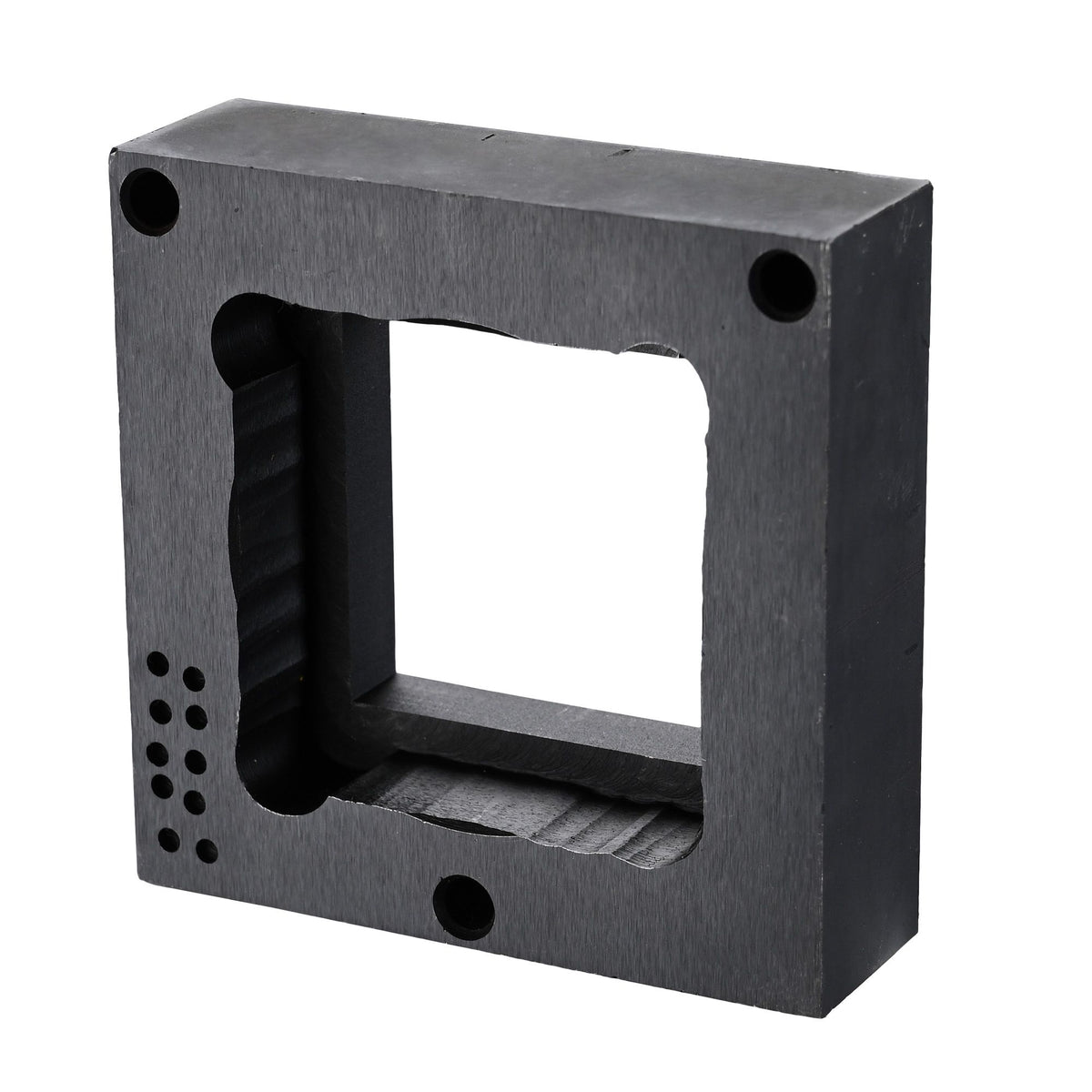

This square hydraulic punch die includes two draw studs and supports fabrication work involving service boxes, wire pathways, signal lamps, and instrument panels.
Key Highlights
- Square die intended for hydraulic punch installation
- Includes two draw studs for the punch setup
- Useful for sheet fabrication and electrical service boxes
- Suited to wire pathways, signal lamps, and instrument panels
Before You Choose
- Confirm that your hydraulic knockout punch kit accepts this die before use.
- Check that the intended workpiece is suitable for the punch setup.
Specifications
| Package Dimensions | {'width_in': 7.09, 'height_in': 6.89, 'length_in': 7.09, 'weight_lb': 7.72} |
|---|
Product Details
Hydraulic Punch Die - This Square Hydraulic Hole Punch Die with 2 draw studs is designed to be installed on hydraulic punch to drill 1 3/4" x 1 3/4" holes on up to 16-gauge stainless steel, 11-gauge iron, steel, aluminum, brass, fiberglass, and plastics. Compatibility - This square knockout die is compatible with our 8/10/15 Ton Hydraulic Knockout Punch Kit. Sturdy Steel Construction - Made of heat treated 40Cr Steel for enhanced hardness, tensile strength, and rust resistance, suitable for long-time punching and cutting for a large variety of materials like iron, stainless steel, aluminum, brass. Widely Used - The hydraulic knockout punch die is ideal for multiple usages such as sheet metal fabrication, electric service boxes, wire pipelines, signal lamps and instrument on construction sites, metallurgy, electronics, etc.
Hydraulic Hole Punch Knockout Die Manual Square Hydraulic Punching Die 45x45mm:
Specifications:
- Overall Dimension(LxWxH) 3 7/16" x 3 7/16" x 4 5/16" (8.8 x 8.8 x 11 cm)
- Conduit Size 1 3/4" x 1 3/4" (4.5 x 4.5 cm)
- Draw Stud Size 1" x 13/16" x 4 5/16" (2.6 x 2 x 11 cm)
- Draw Stud Thread Size M20×1.5, M3/4-16
- Max. Thickness for Iron 1/8" (11 gauge)
- Max. Thickness for Stainless Steel 1/16" (16 gauge)
- Material 40Cr Steel
- Net Weight 6.4 Lbs (2.9 kg)

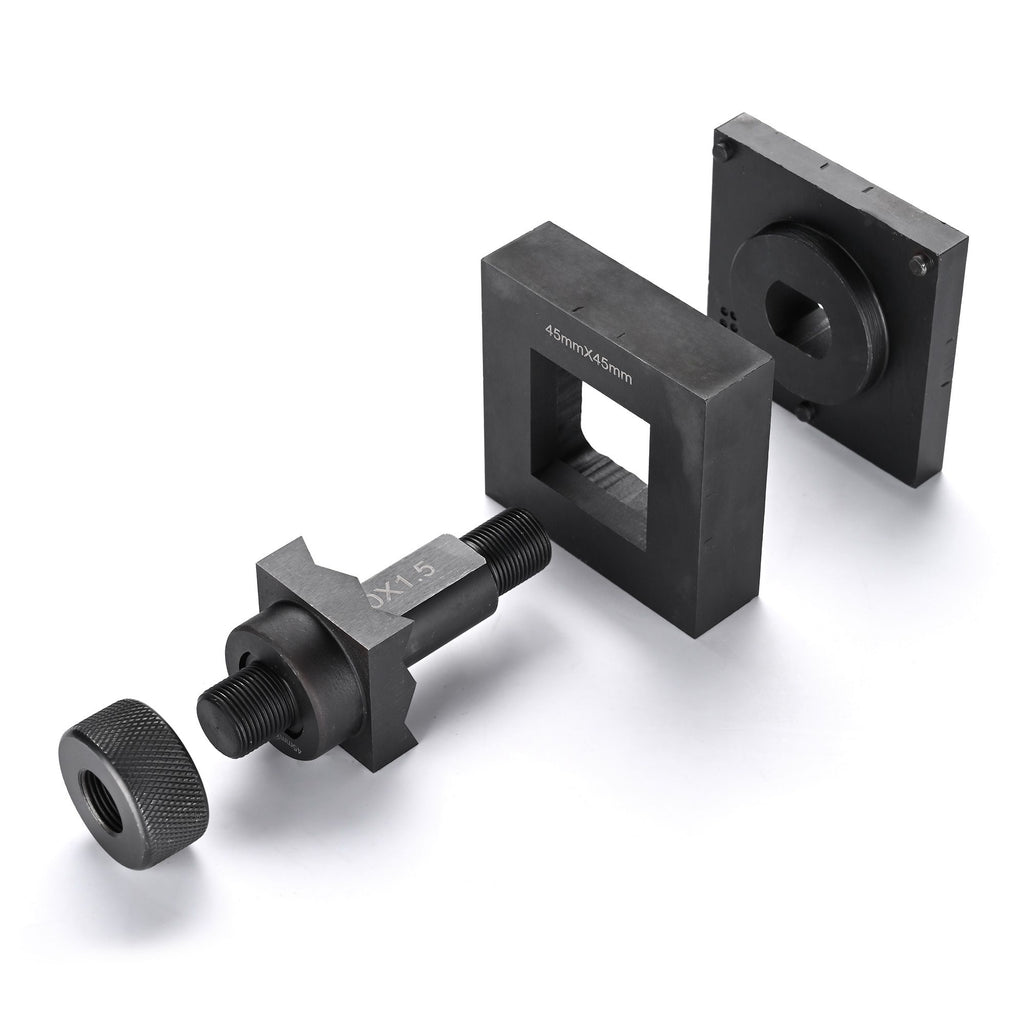

Package Contents:
- 1x Hydraulic Punching Die
- 2x Draw Studs
- 2x Nuts
- 1 Pair of Gloves
- 1x Manual
