Adjustable Table Saw Miter Gauge with Positive Stops

Product Overview

This table saw miter gauge combines an adjustable head, positive angle stops, a spring-loaded plunger, and a detachable disc for compatible standard T-shaped and U-shaped slots.

Key Highlights

• Adjustable head supports a range of common cutting angles.
• Positive stop holes aid repeatable angle selection.
• Spring-loaded plunger engages the selected stop.
• Detachable disc supports compatible T-shaped and U-shaped slots.
• Partially assembled design reduces initial setup steps.
• Intended for woodworking with compatible table saws.

Before You Choose

• Confirm that your table saw uses a compatible standard T-shaped or U-shaped miter slot before purchase.
• Attach the remaining core components before use.

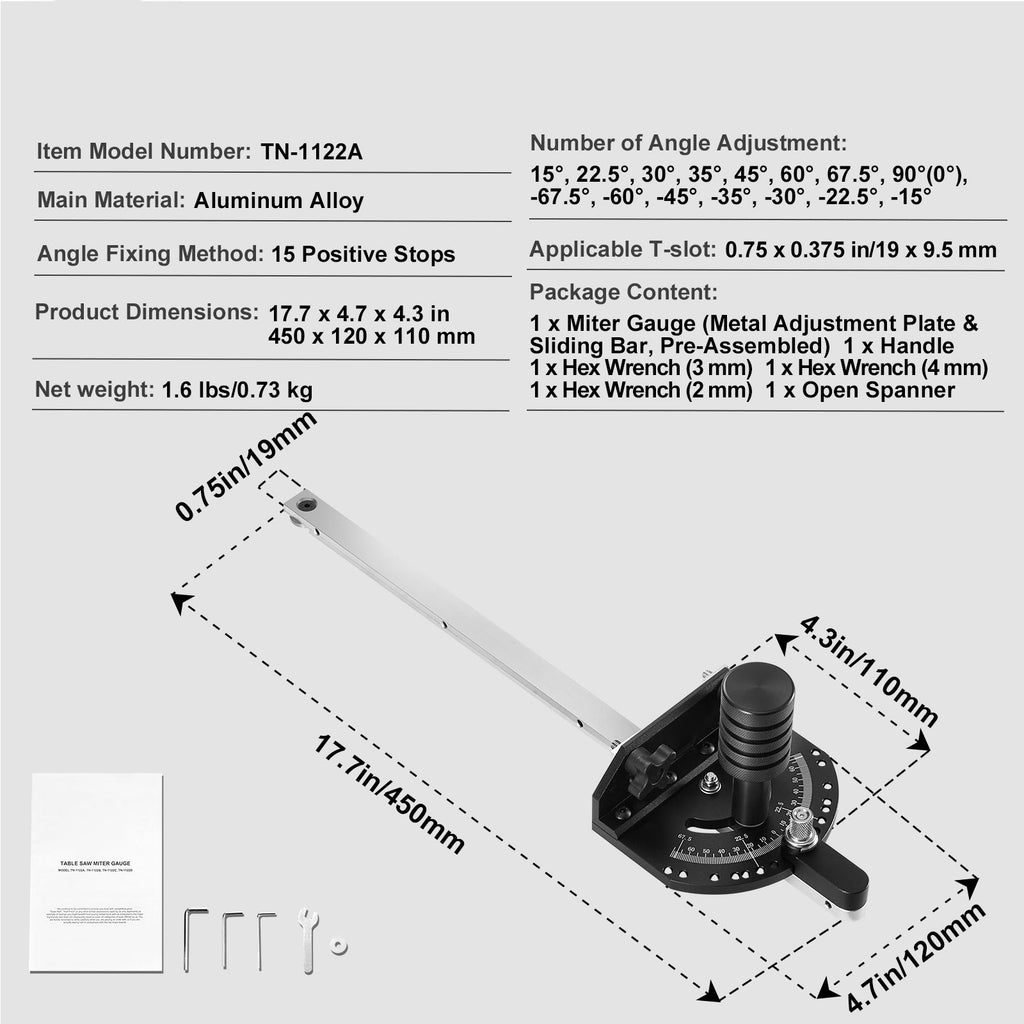

Specifications

Product Details

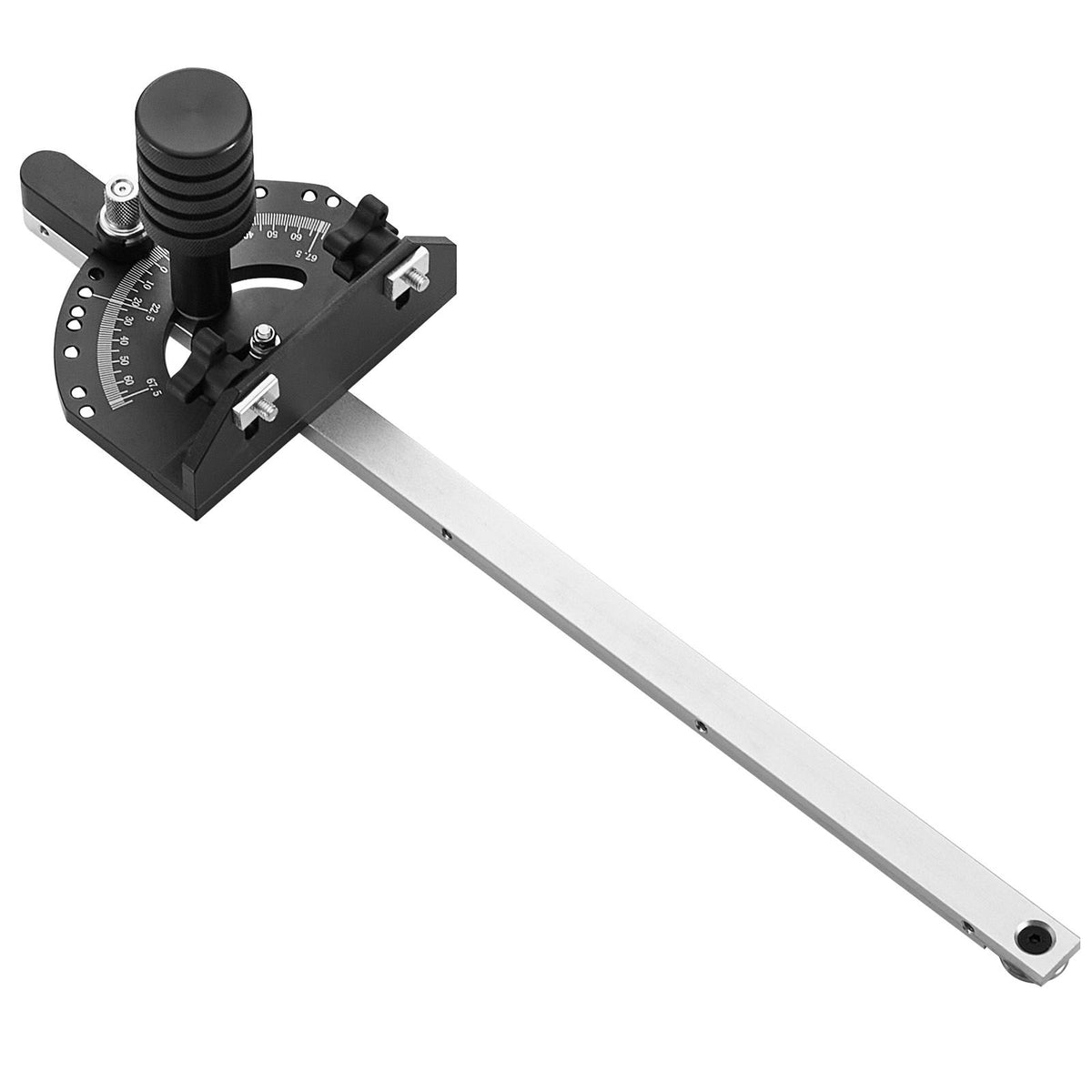

Woodworking Table Saw Miter Gauge

Our miter gauge fits most standard table saw slots measuring 3/4 x 3/8 in ( 19 x 9.5 mm). Featuring a detachable disc, it is compatible with both 3/4'' x 3/8'' T-shaped and U-shaped slots. Engineered with 15 positive stop holes, it's the ideal upgrade for precision woodworking.

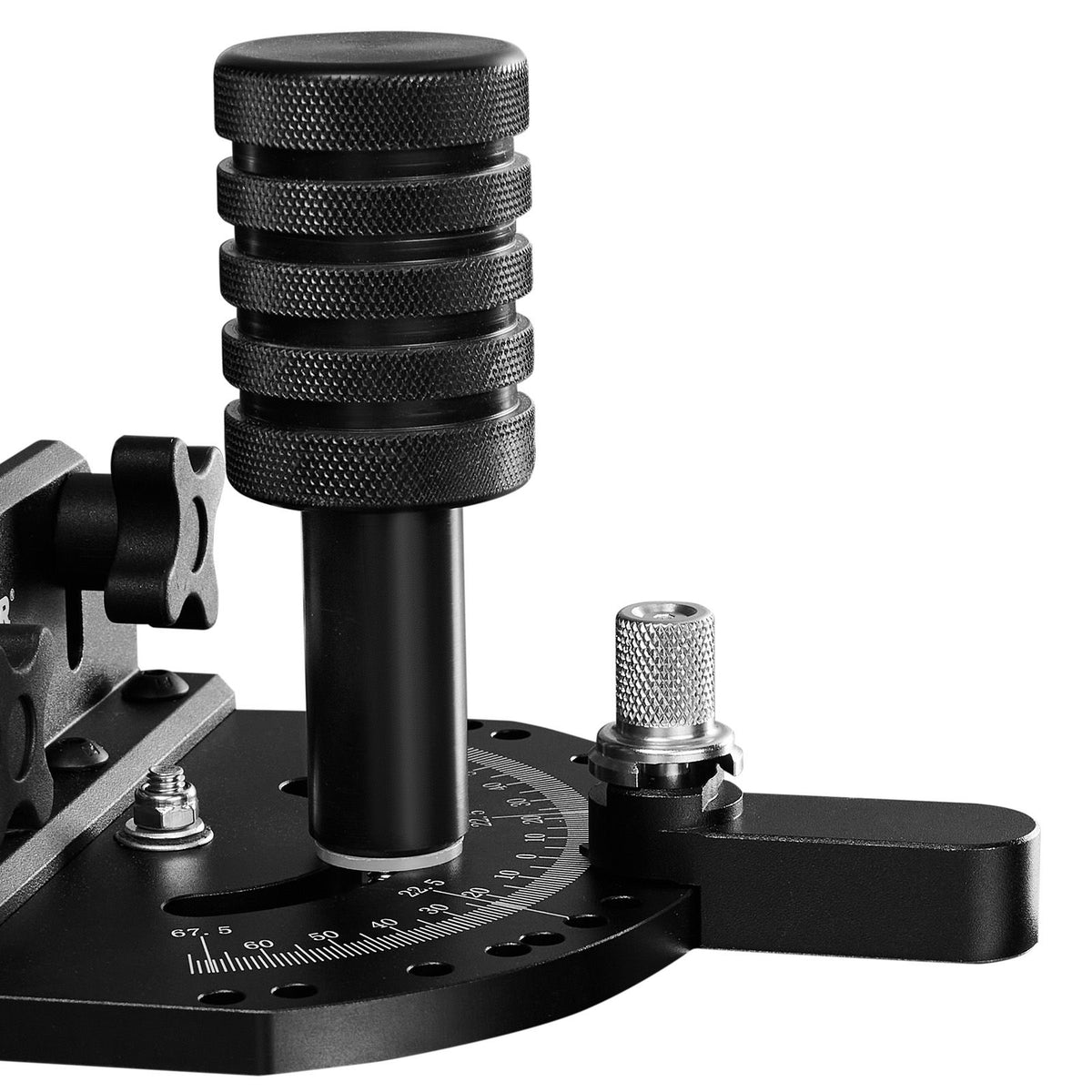

Experience cutting precision with our adjustable solid aluminum head, engineered with 15 positive stop holes for ultimate accuracy. One stop hole is set at 90 degrees, with seven additional holes on each side at 15°, 22.5°, 30°, 35°, 45°, 60°, and 67.5° to cover most woodworking angles.

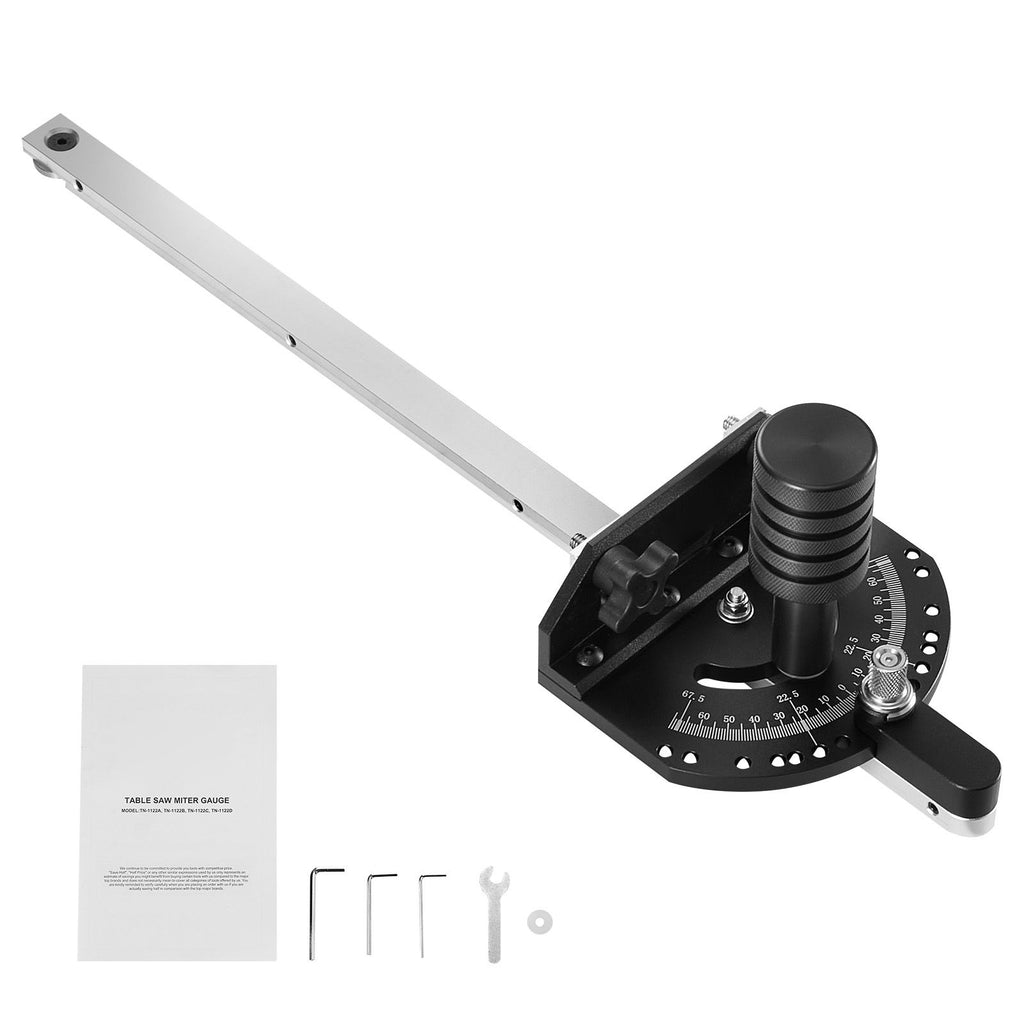

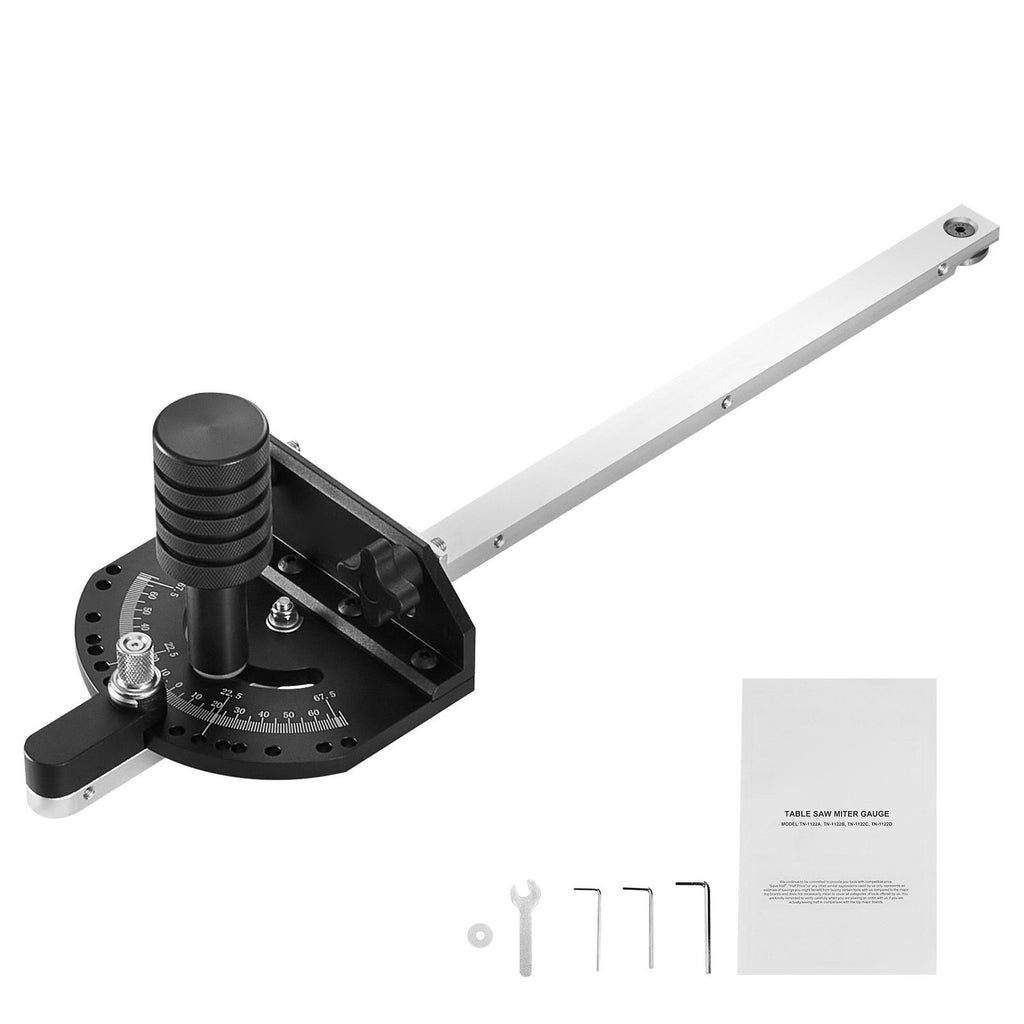

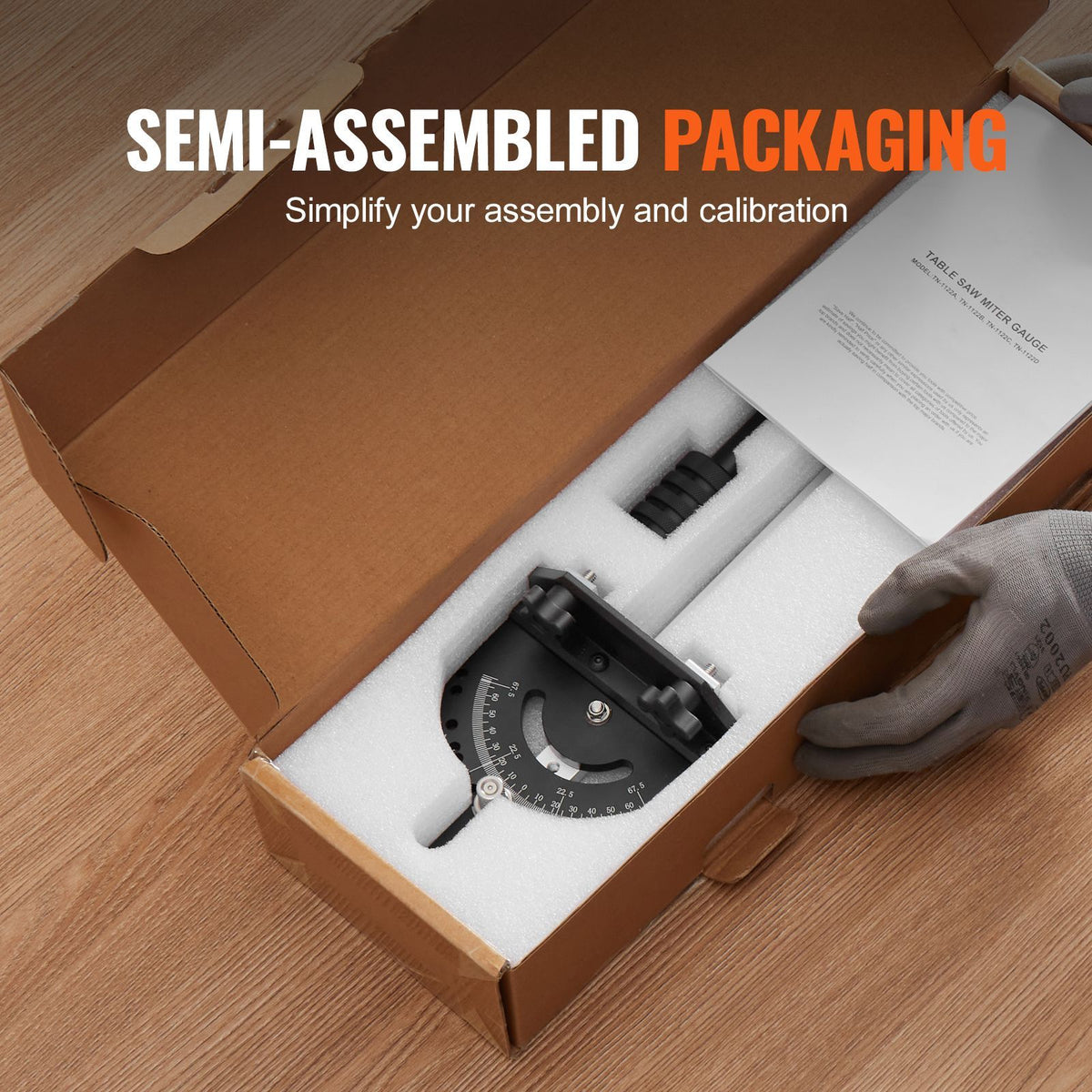

This miter gauge for table saw is partially assembled to streamline your setup process. When it arrives, you won't need to fuss with numerous small parts. Just attach a few core components, and you're ready to go.

Our table saw miter gauge features a steel miter bar equipped with an adjustable bead spring plunger on the side. When placing the miter gauge in the table saw slot, if you notice any gaps, simply use the included hex wrench to adjust the plunger.

This precision miter gauge is constructed from aluminum alloy, ensuring durability and resistance to deformation. The angle plate scale is laser-engraved to maintain accuracy for consistent long-term usage. Additionally, the textured metal handle enhances your comfort without slipping.
