Box and Pan Brake with Modular Segment Fingers

Product Overview

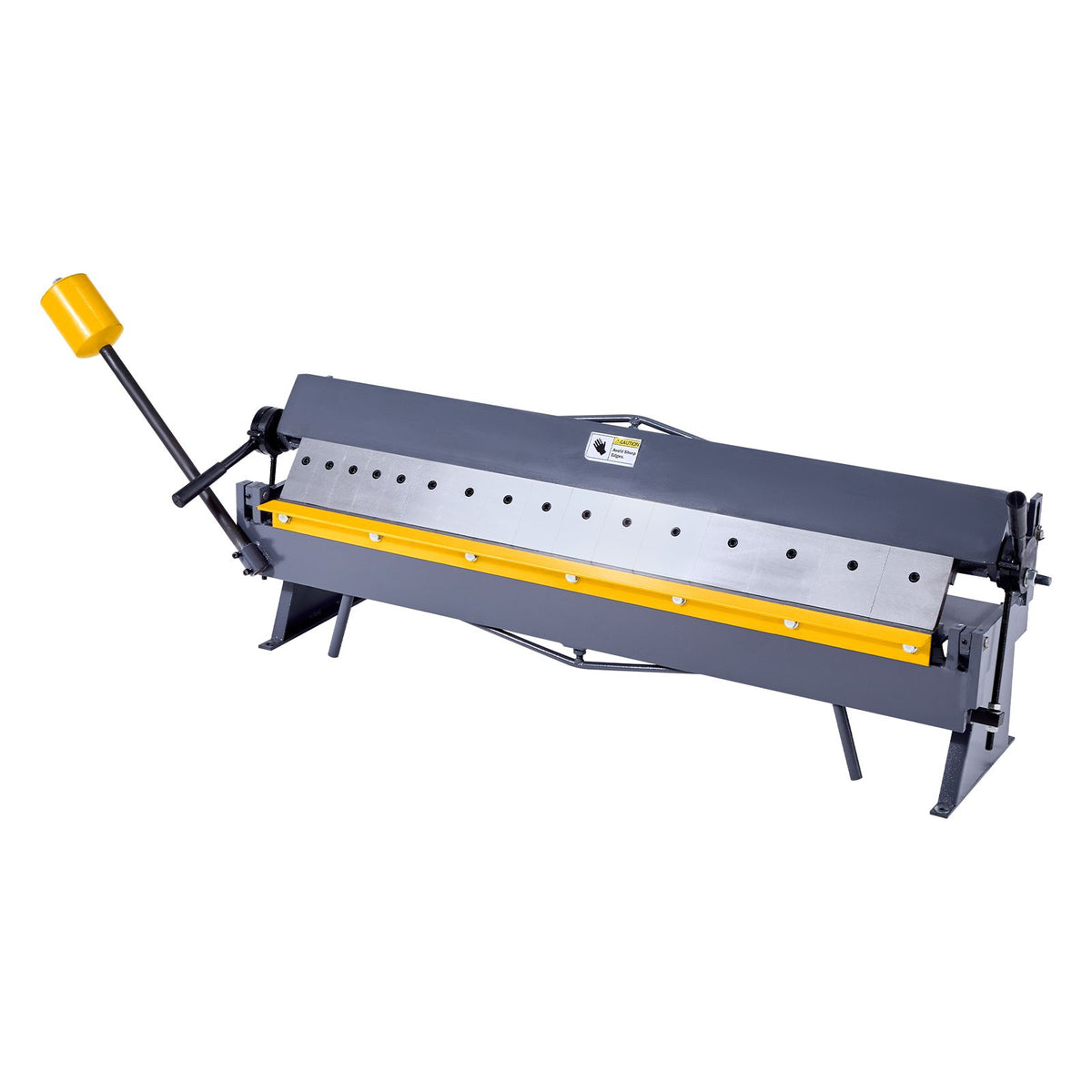

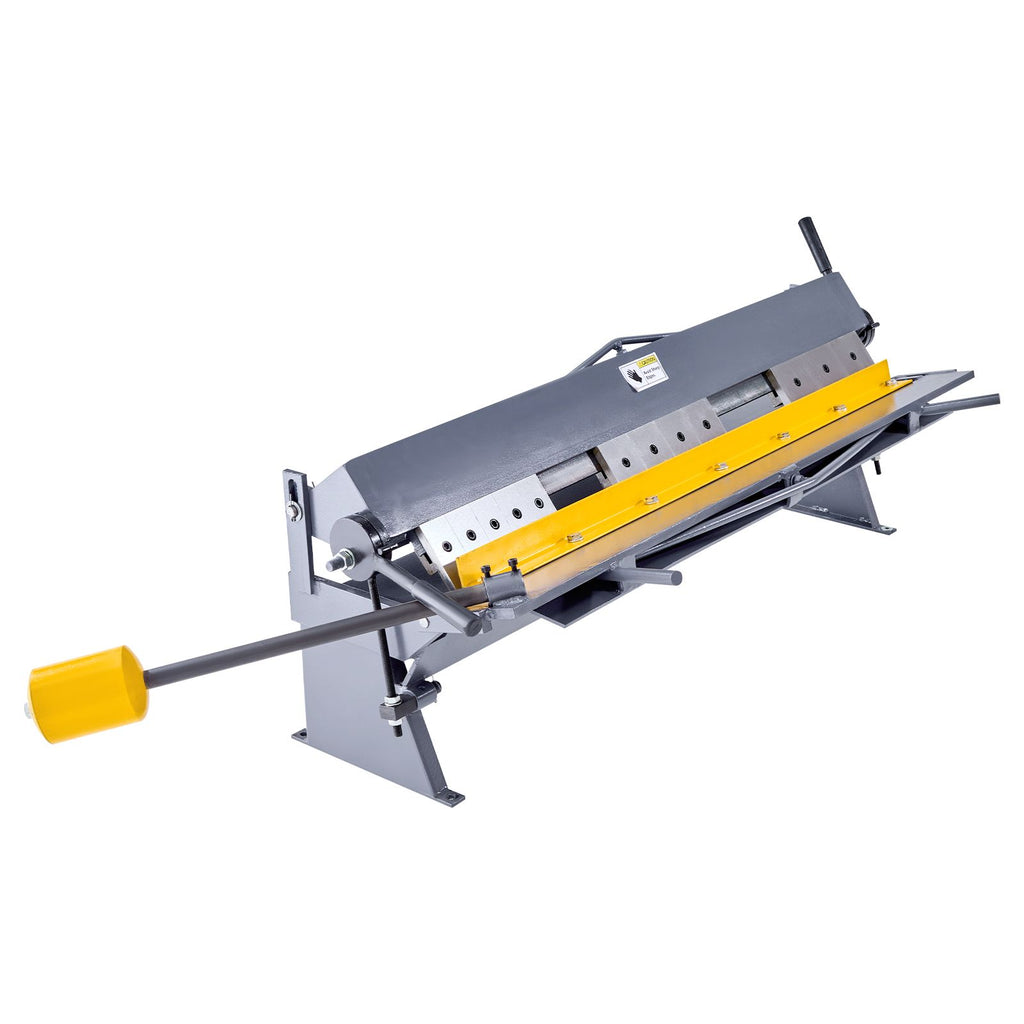

This box and pan brake supports custom sheet fabrication with modular segment fingers, secure clamping, manual angle control, a balancing hammer, and mounting points for a stable workstation setup.

Key Highlights

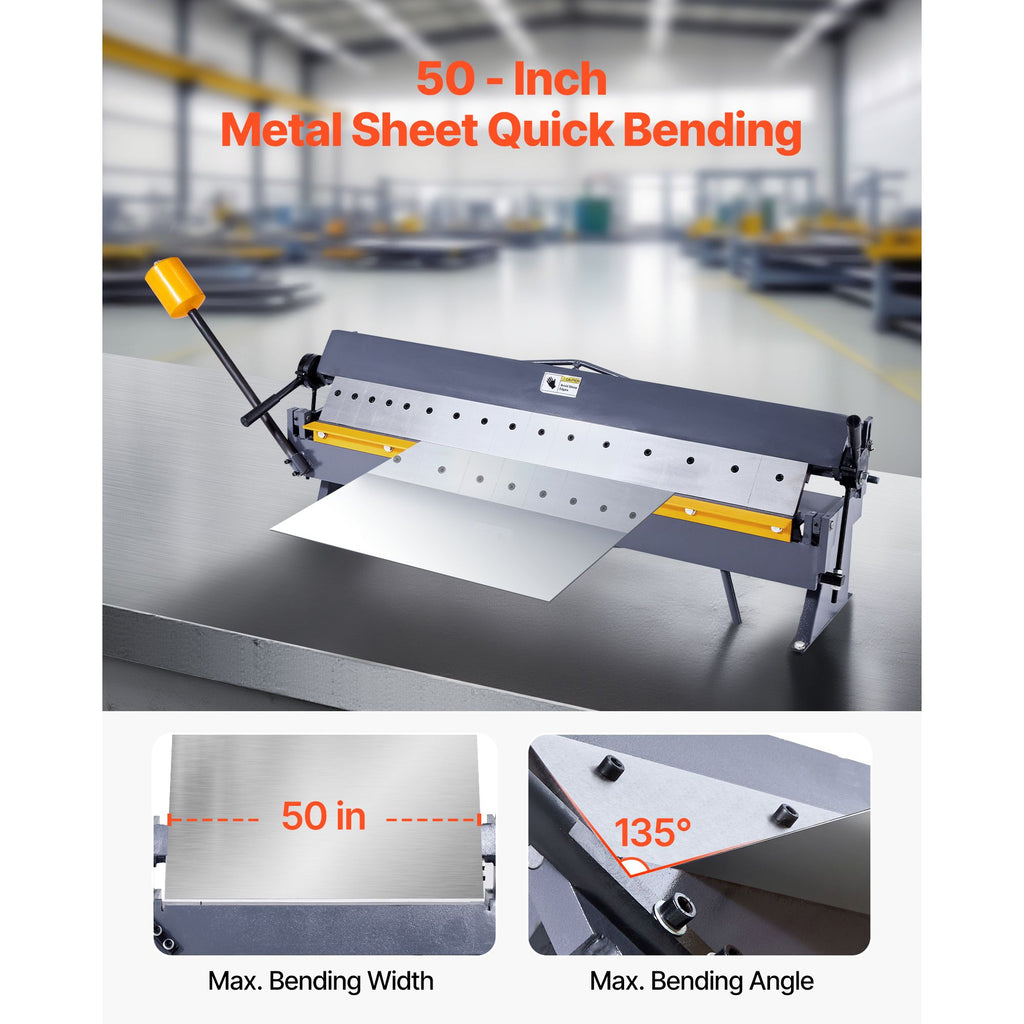

• Handles wide-sheet bending for custom fabrication projects.

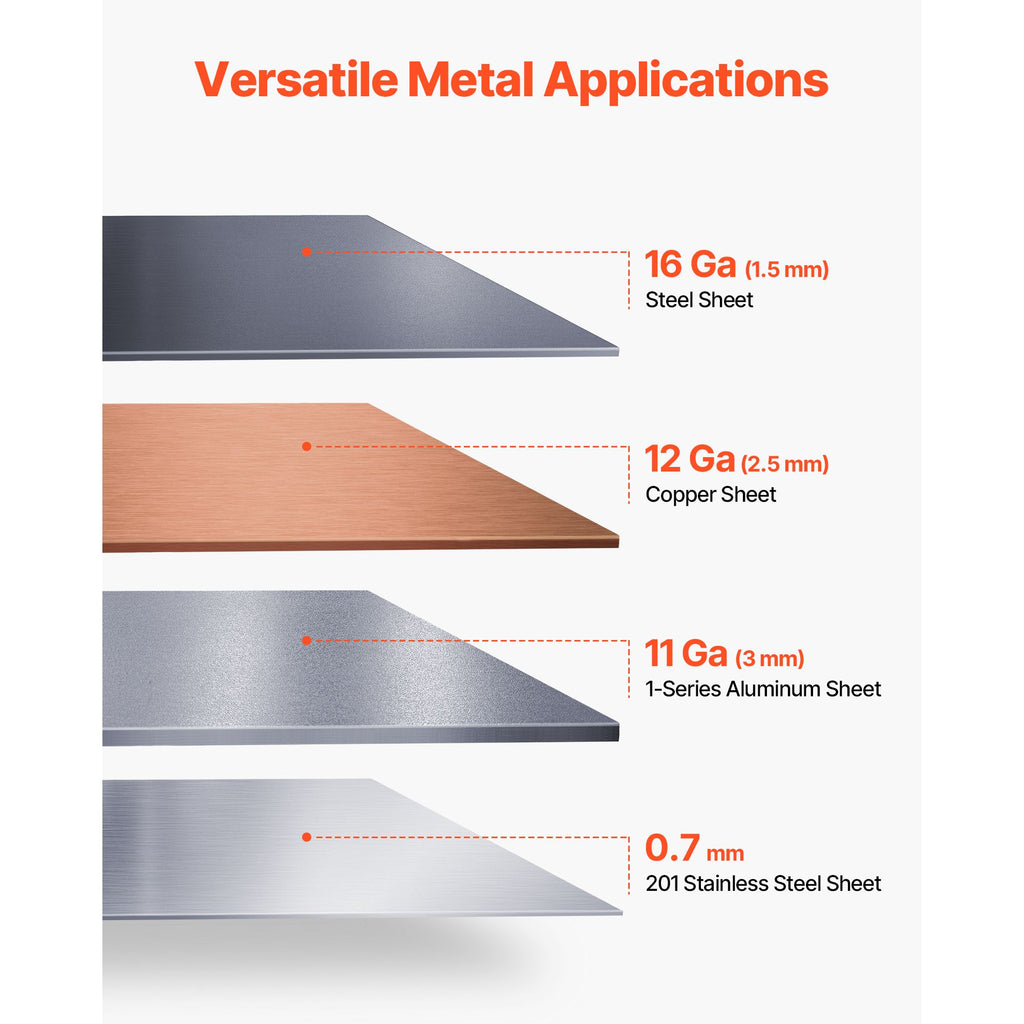

• Supports sheet-forming work across several commonly fabricated metal types.

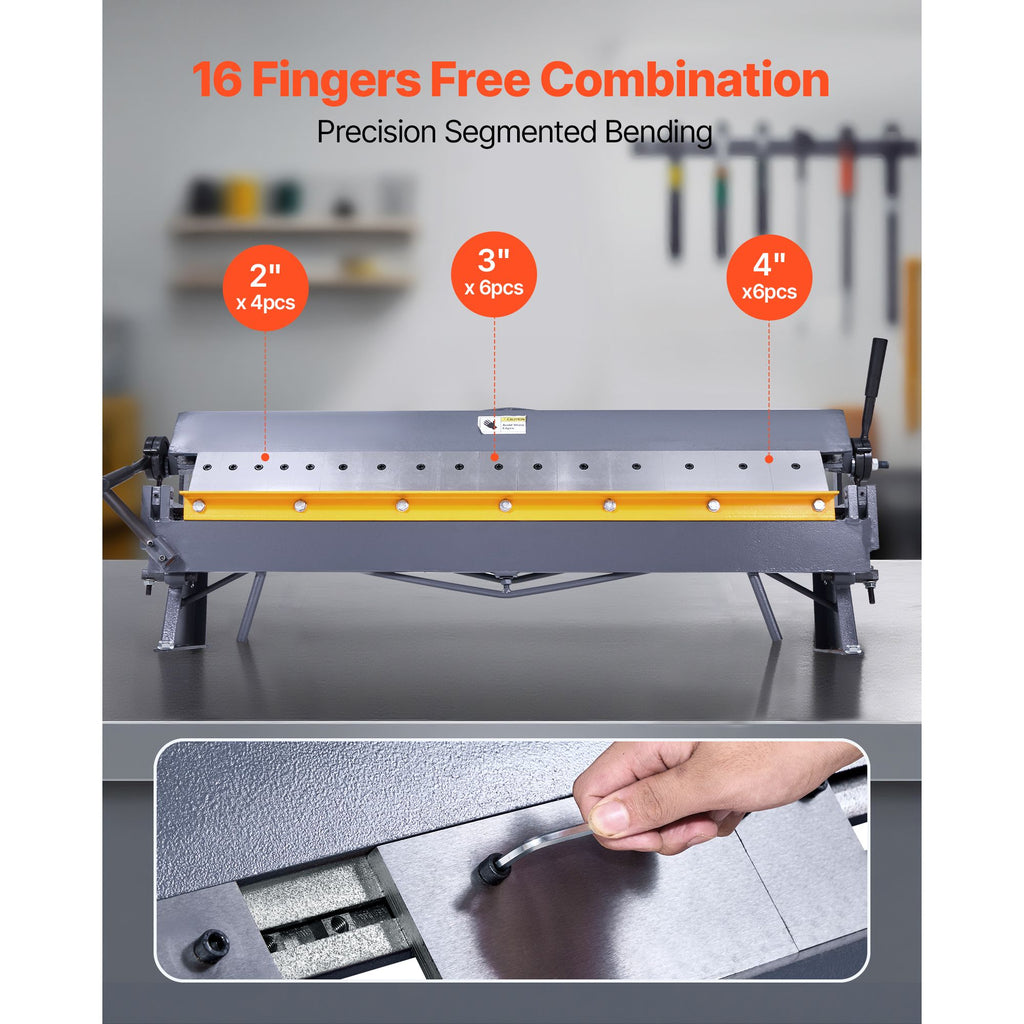

• Modular segment fingers can be rearranged for segmented and box-forming bends.
• Suitable for forming electrical enclosures, instrument housings, and ventilation ducts.

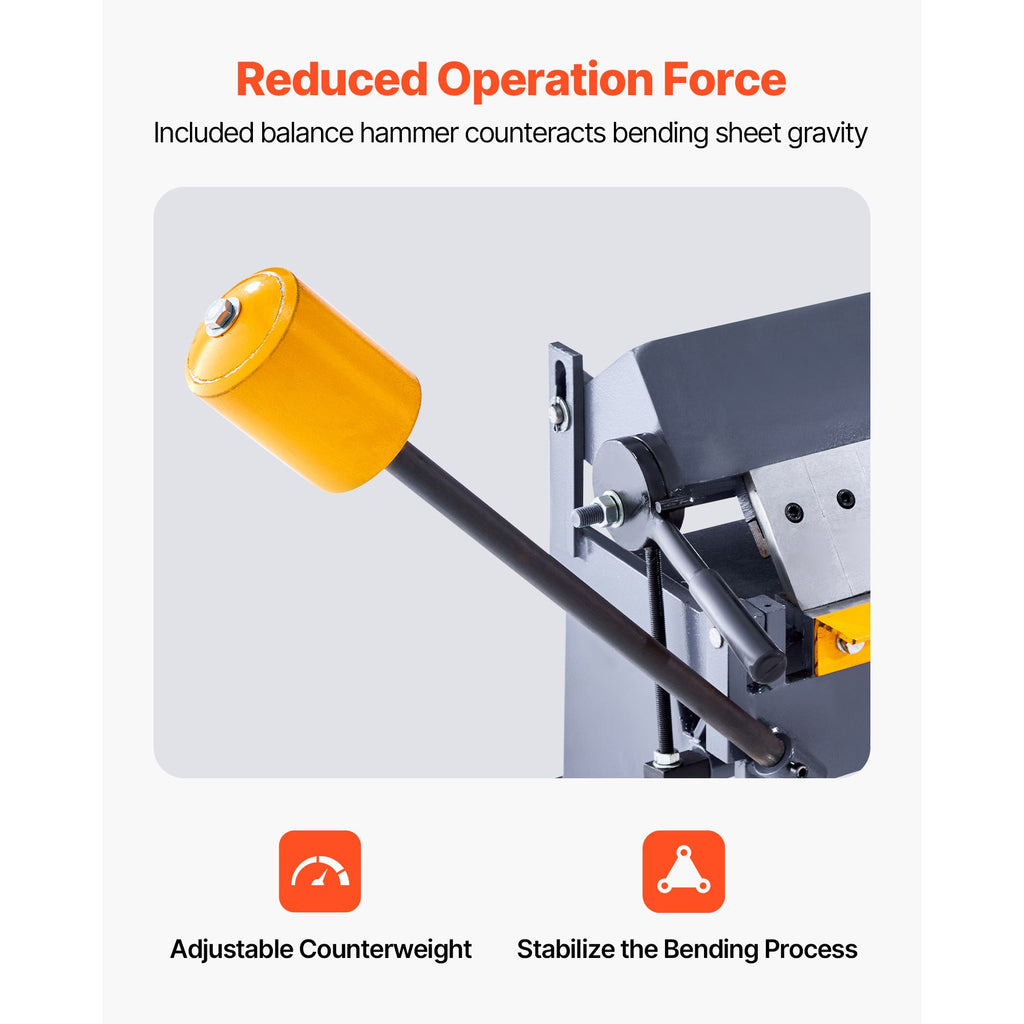

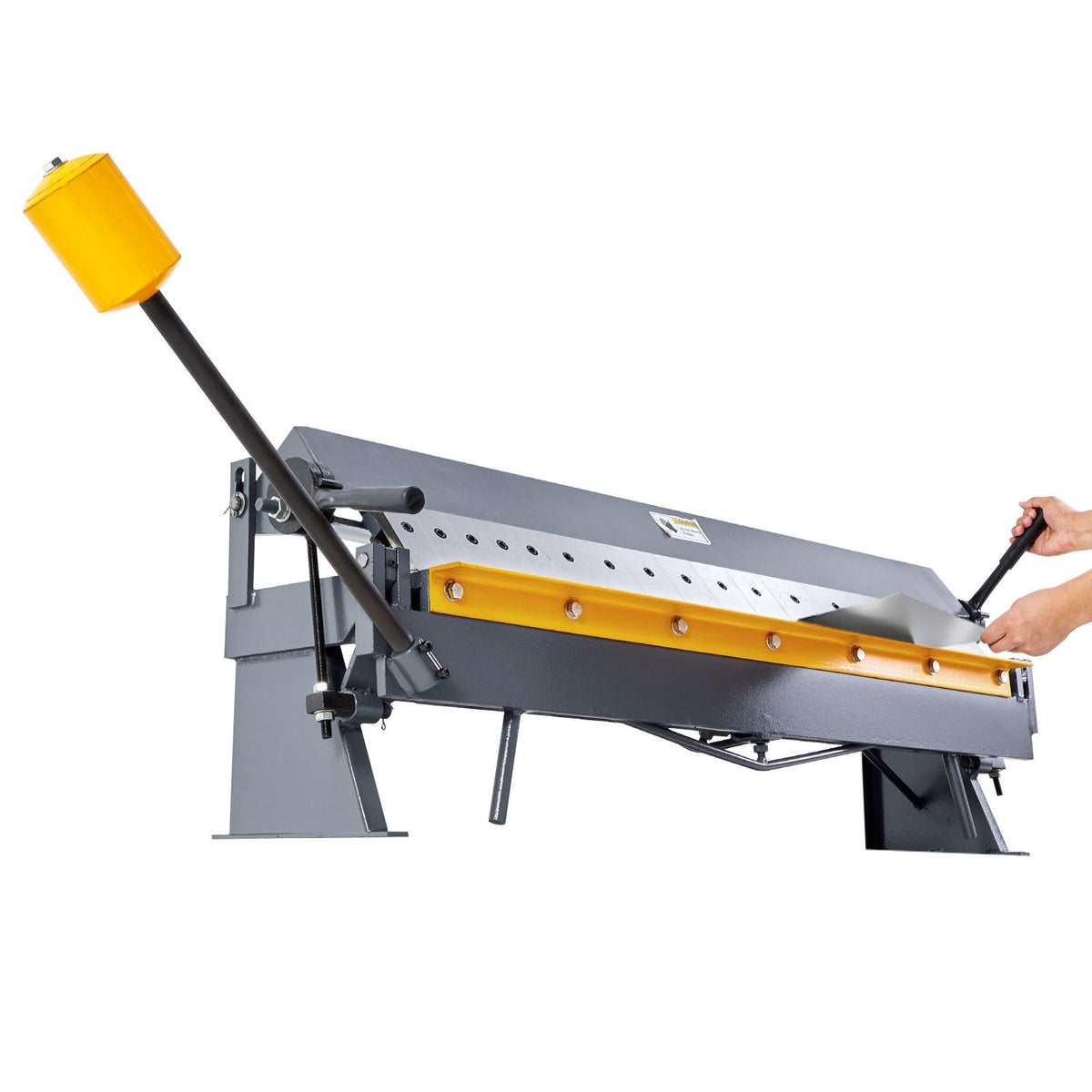

• A balancing hammer assists the clamping and bending motion.
• Pre-drilled base holes allow secure workbench or floor mounting.

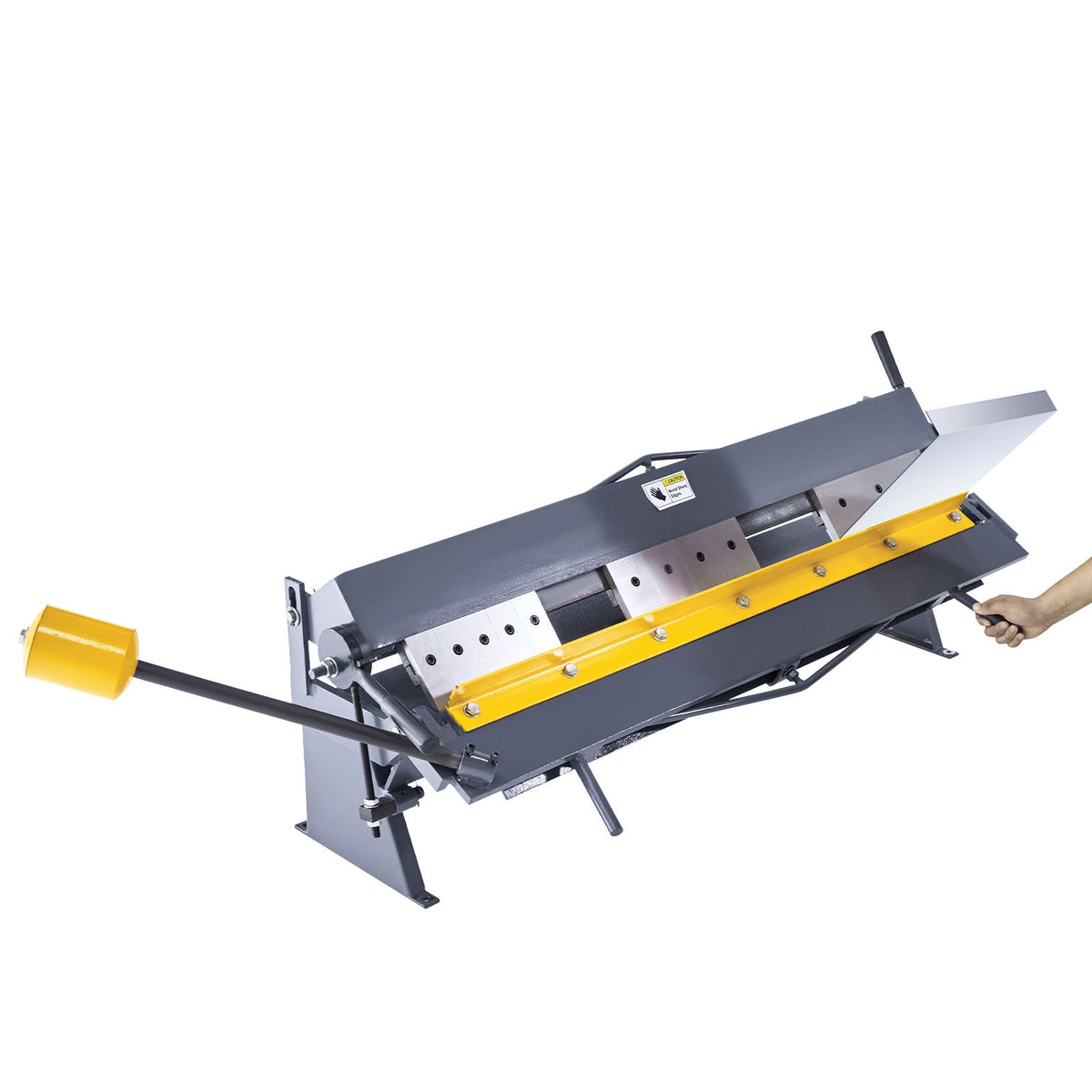

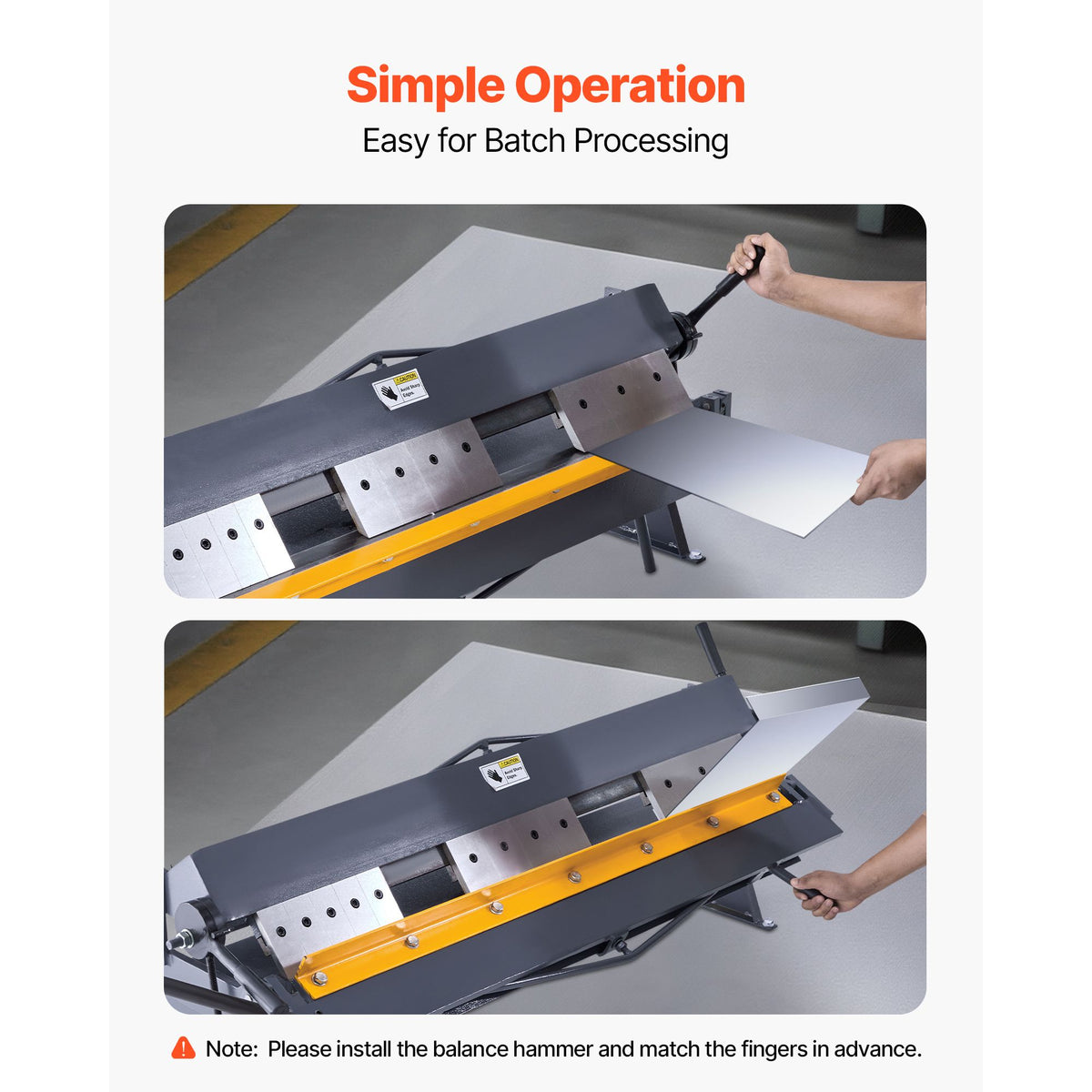

• Operation follows a straightforward clamp-and-lift bending sequence.
• Manual angle adjustment is required, including compensation for normal springback.

Before You Choose

• Mount the brake to a suitable workbench or floor through the pre-drilled base holes before use.
• Account for normal metal springback when setting the manual bend angle.

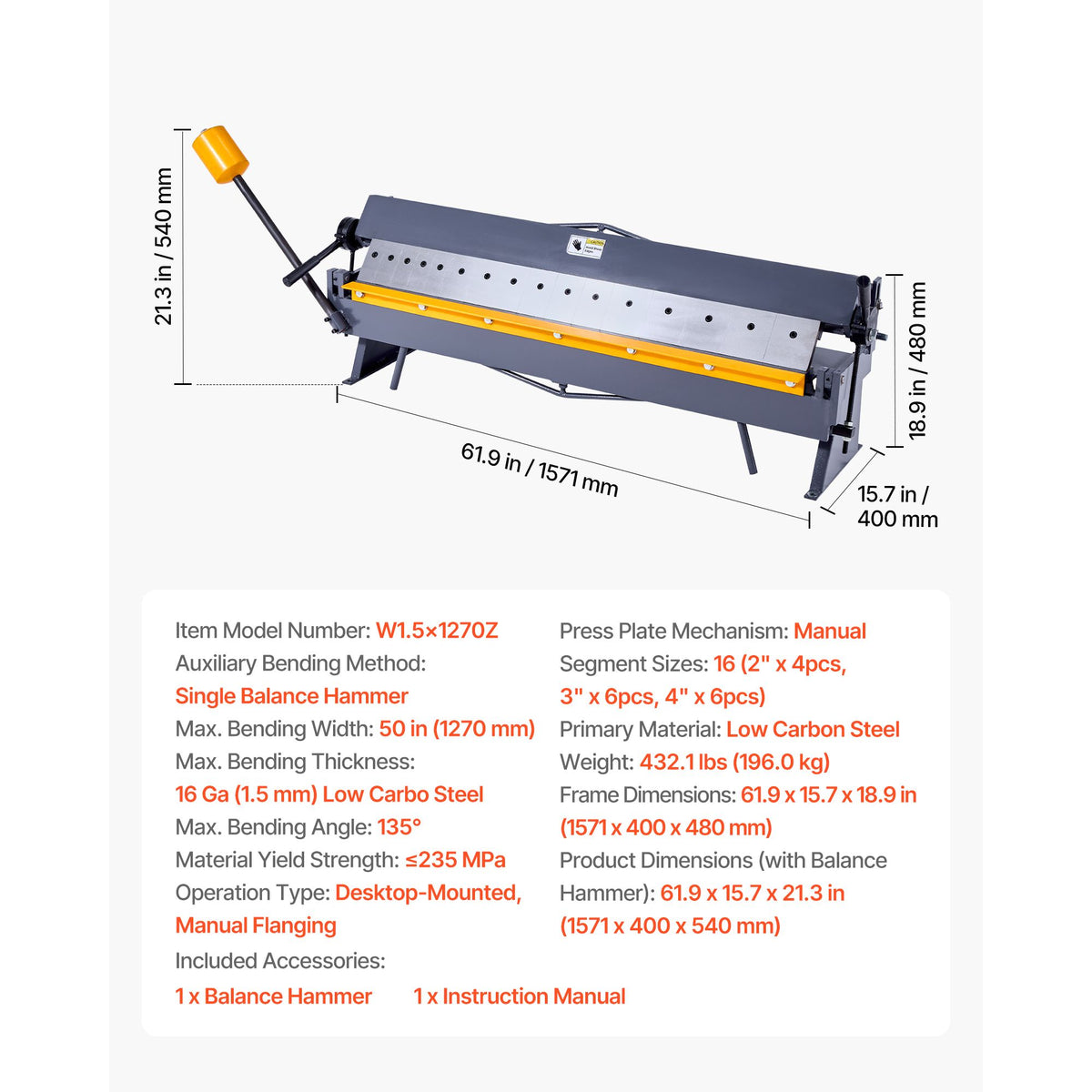

Specifications
