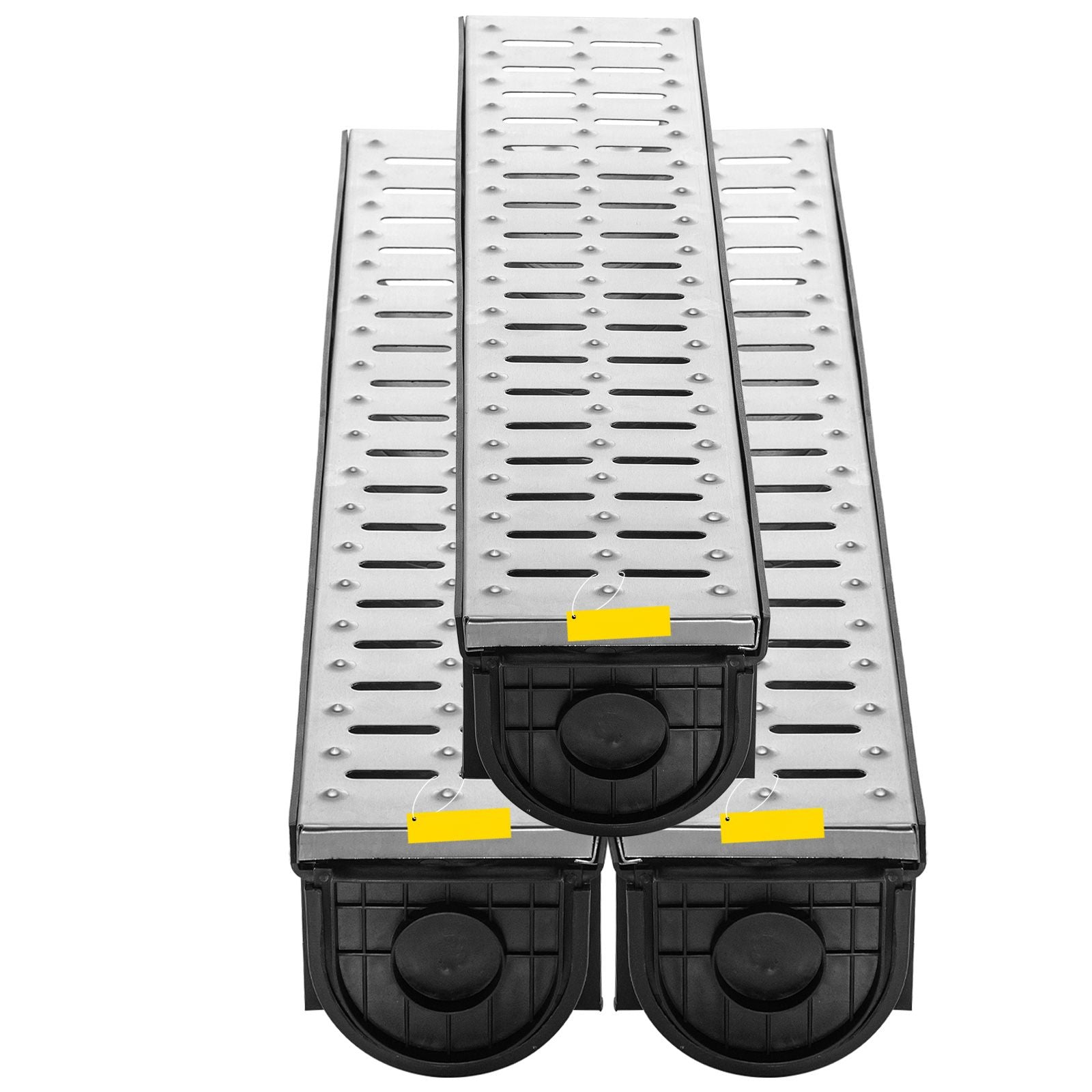

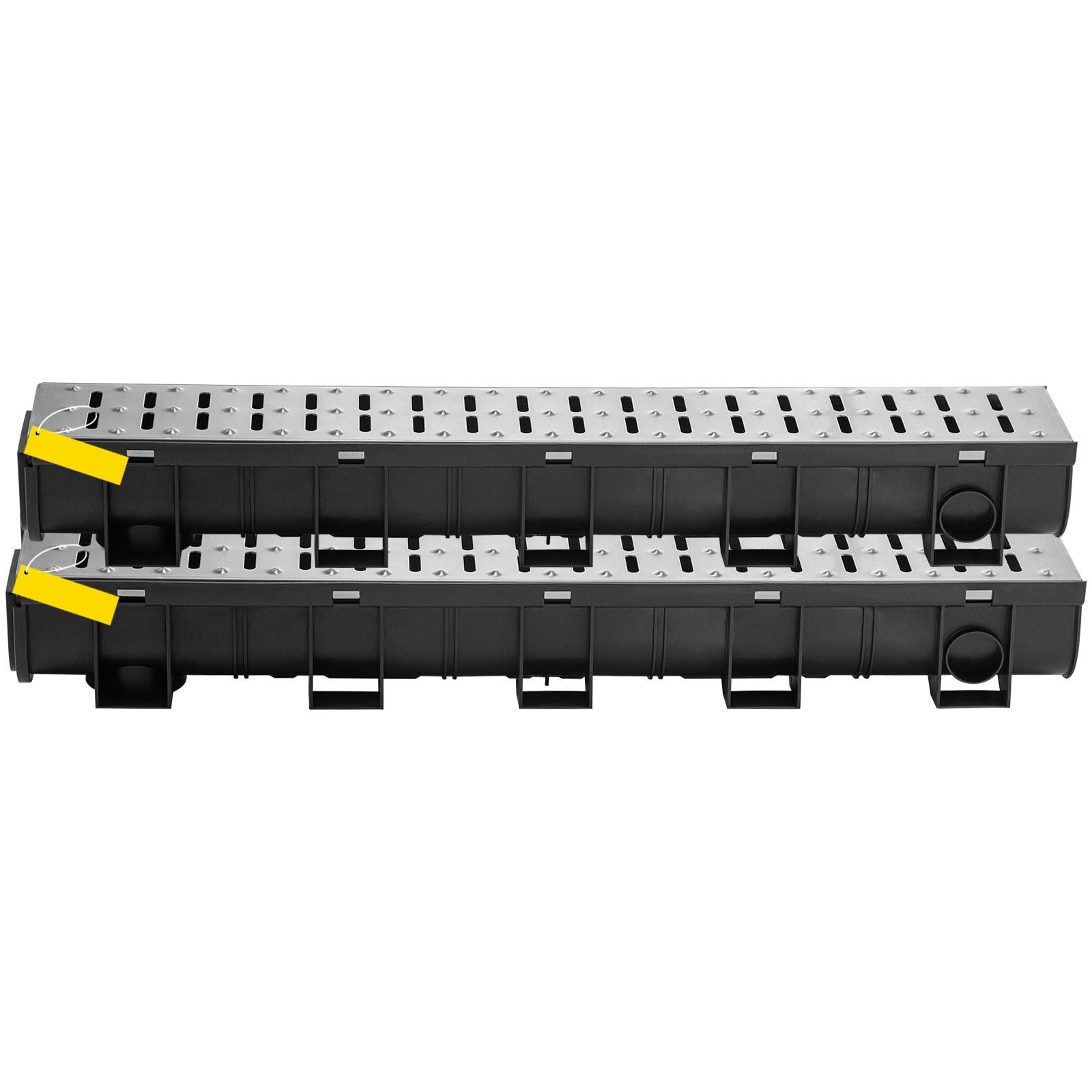

Commercial Grade Trench Drain System with Metal Grate - 3 Pack

Product Overview

Low-profile HDPE trench drain system with metal grates, anti-flotation design, interlocking connections, and multiple outlet options. Features A15 load capacity and includes three drains with built-in outlets, three grates, and three end caps for efficient drainage.

Key Highlights

• Low-profile design: Each channel measures 5.9"W x 5.1"H x 39.4"L with anti-flotation for concrete setting without staking.
• Easy installation: Interlocking connections for leak-free extension; detachable grate installs without screws or bolts for easy cleaning.
• Multiple outlet options: Bottom outlet with two sizes ( and ) and side outlet () with built-in connectors for direct pipe connection.
• everyday construction: Sturdy HDPE plastic and stainless steel, rated A15 load capacity; smooth interior ensures fast water intake.
• Complete kit: Includes three drains with built-in bottom outlets, three plastic grates, and three end caps – all necessary accessories included.

Specifications

Product Details

Driveway Trench Drain System

Quick Installation & Detachable Grates & High Durability

This driveway trench drain provides an effective collection and drainage of water. Made of durable HDPE plastic, it works efficiently and has a long service time. With the interlocking connection design, you can install it easily. The drain is one meter long each. It can be connected together to fit your need. Rated for B125, it is an ideal choice for your garage. Also, it is suitable for the garden, pool, walkway, courtyard, and other outdoor places.

• Low-profile Drain System

• Easy & Quick Installation

• Various Outlet Connections

• Durability & High Performance

• Complete Packing List

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality

• Incredibly Low Prices

• Fast & Secure Delivery

• 30-Day Free Returns

• 24/7 Attentive Service

Hassle-Free Installation

Each trench drain interlocks with the other; each one is one meter long. You can connect them to extend the length of the drains so that they will meet the length you need.

Removable Grates

The installation of the grate requires no screws or bolts; thus, it is easily detached for cleaning. Though it requires no screws or bolts, it still works stably and holds up great.

Water Outlets

The bottom and side outlet connections are built into this trench drain. The bottom outlet contains multiple sizes for different piping methods. With the built-in outlet connector, the pipe can be connected directly.

HDPE + Stainless Steel Material

Made of HDPE plastic and stainless steel, the load capacity is A15. It is suitable for driveways. The superior material creates a smooth and durable surface to drain the water away smoothly.

Trench Drain Kit

This trench drain kit includes three trench drains. Each one is one meter long. The accessories include three metal grates and three end caps. We offer you all the accessories that you may need.

Extensive Application

This sturdy and durable drain is suitable for various places, like gardens, pools, sports courts, courtyard, walkways, and more. With the A15 load rate, it is also suitable for driveways.

Specifications

• Model: PSG100*100*3M

• Material of Trench Drain: HDPE Plastic

• Material of Grate: Stainless Steel

• Color: Black & Silver

• Load Rate: A15

• Amount: 3 Pack

• External Item Dimensions: 5.9 x 5.1 x 39.4 inch/ 15 x 13 x 100 cm

• Internal Item Dimensions: 3.9 x 3.9 x 39.4 inch/ 10 x 10 x 100 cm

• Diameter of Bottom Drain Hole: 3.1 inch or 3.6 inch

• Diameter of Side Drain Hole: 2.2 inch/ 5.5 cm

• Item Weight Each: 3.3 kg / 7.3lbs

• Maximum Working Temperature: 120℃ / 248℉

• Minimum Working Temperature: -40℃ / -40℉

Package Content

• 3 x Trench Drain

• 3 x Metal Grate

• 3 x End Cap
